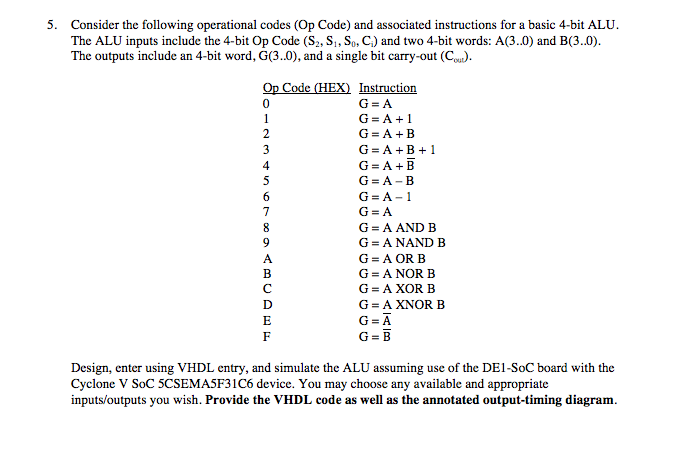

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.NUMERIC_STD.ALL;
entity alu is
Port ( inp_a : in signed(3 downto 0);
inp_b : in signed(3 downto 0);
sel : in STD_LOGIC_VECTOR (2 downto 0);
out_alu : out signed(3 downto 0));
end alu;
architecture Behavioral of alu is
begin
process(inp_a, inp_b, sel)
begin
case sel is
when “000” =>
out_alu<= inp_a + inp_b; –addition
when “001” =>
out_alu<= inp_a – inp_b; –subtraction
when “010” =>
out_alu<= inp_a – 1; –sub 1
when “011” =>
out_alu<= inp_a + 1; –add 1
when “100” =>
out_alu<= inp_a and inp_b; –AND gate
when “101” =>
out_alu<= inp_a or inp_b; –OR gate
when “110” =>
out_alu<= not inp_a ; –NOT gate
when “111” =>
out_alu<= inp_a xor inp_b; –XOR gate
when others =>
NULL;
end case;
end process;
end Behavioral;

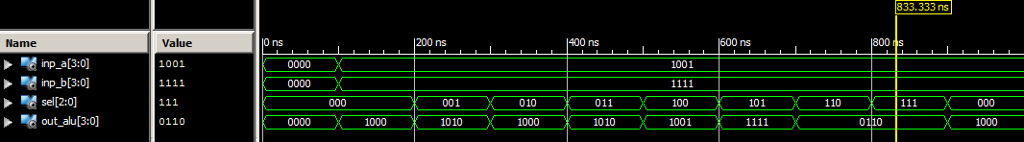

Testbench VHDL Code for 4-Bit ALU
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;
USE ieee.numeric_std.ALL;
ENTITY Tb_alu IS
END Tb_alu;
ARCHITECTURE behavior OF Tb_alu IS
— Component Declaration for the Unit Under Test (UUT)
COMPONENT alu
PORT(
inp_a : IN signed(3 downto 0);
inp_b : IN signed(3 downto 0);
sel : IN std_logic_vector(2 downto 0);
out_alu : OUT signed(3 downto 0)
);
END COMPONENT;
–Inputs
signal inp_a : signed(3 downto 0) := (others => ‘0’);
signal inp_b : signed(3 downto 0) := (others => ‘0’);
signal sel : std_logic_vector(2 downto 0) := (others => ‘0’);
–Outputs
signal out_alu : signed(3 downto 0);
BEGIN
— Instantiate the Unit Under Test (UUT)
uut: alu PORT MAP (
inp_a => inp_a,
inp_b => inp_b,
sel => sel,
out_alu => out_alu
);
— Stimulus process
stim_proc: process
begin
— hold reset state for 100 ns.
wait for 100 ns;
— insert stimulus here
inp_a <= “1001”;
inp_b <= “1111”;
sel <= “000”;
wait for 100 ns;
sel <= “001”;
wait for 100 ns;
sel <= “010”;
wait for 100 ns;
sel <= “011”;
wait for 100 ns;
sel <= “100”;
wait for 100 ns;
sel <= “101”;
wait for 100 ns;
sel <= “110”;
wait for 100 ns;
sel <= “111”;
end process;
END;
